THE FUTURE OF
LAUNCH SPACE IS HERE
Discover High Volume Satellite Constellation Enabling Technology From Horizon One
VISION
We’re changing the way the world thinks about launch and orbit platforms
By stacking flat or high–aspect-ratio small satellites with our assembly and release technology, we transform traditional single satellite-to-launcher interfaces into a multi-tiered deployment system capable of launching entire constellations in one mission.
Products
Stacker: Flat-pack Satellite Constellation Launch Technology
Dispenser: (Coming soon) Dispenser for Standardised Sat platforms & ISAM Tiles
H1DRM: Ultra-low size HDRM actuator for low mass (Preload: <50N) deployable applications
STACKER

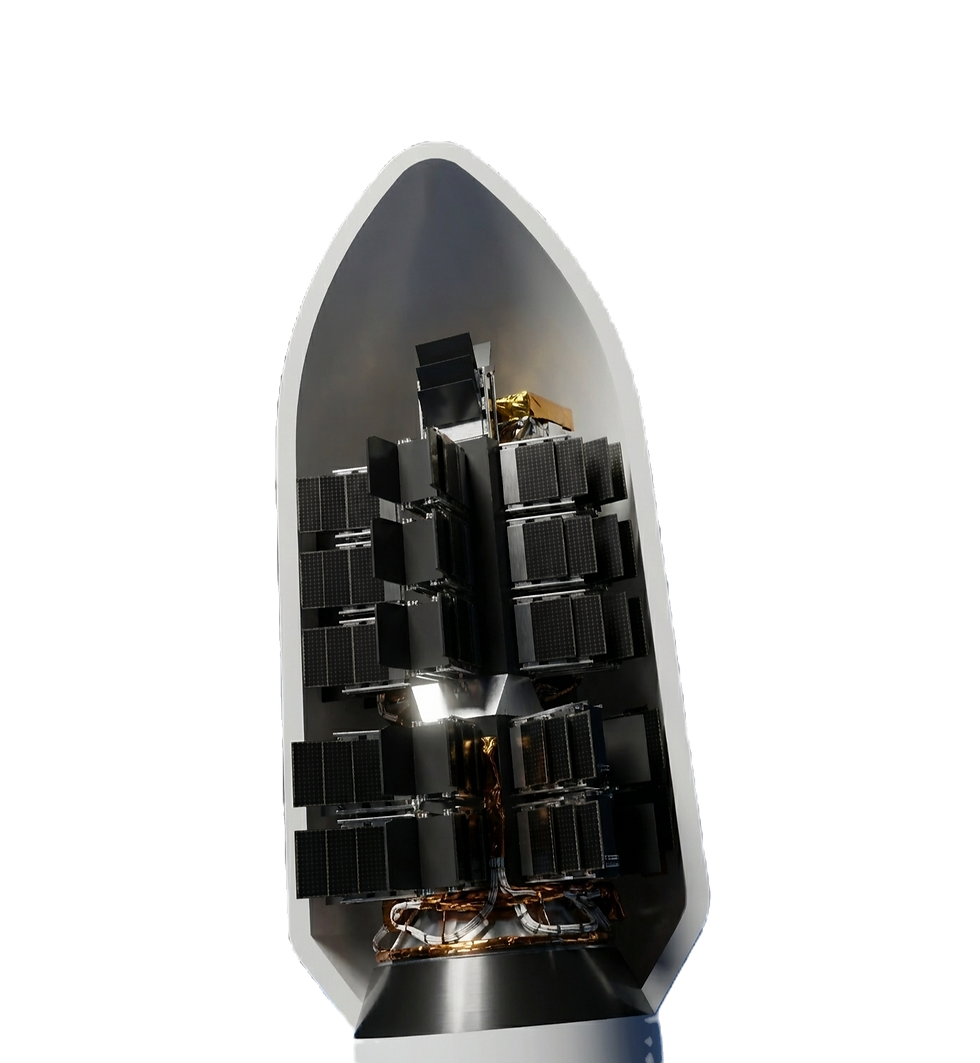

Stacking satellites activates significantly greater rocket payload interface volume.
Horizon One’s “Stacker” modules cut the cost of space access by allowing small satellites (10–150 kg) to be stacked, reducing launch costs per satellite platform to 15-33% of current rates.
Designed for constellation missions, four stackable assembly and release units are bolted to each satellite to enable streamlined multi-sat deployment.
Stackers can be readily attached to existing satellite platforms such as Small sats(<150kg) and CubeSats (e.g. 6x1U, 8x1U).
-
Deployment is controlled by integrated preload & release system
-
Suited to satellite applications such as; Phased Array Antenna Satcomms, environment sensing and more
-
Preload up to 35kN
-
Mass: 1kg each
Satellite Dispensers
Stack. Launch. Deploy. A scalable dispenser for rapid constellation rollout and ISAM tile deployment.
Deploying the building blocks of tomorrow’s space infrastructure. Our automated tile dispenser enables the assembly of large-scale structures in space; from solar arrays and satellite communications arrays, to segmented telescope mirrors.
COMING SOON!
H1DRM
Release exactly when and how your mission demands.
Goodbye Burn wire. Hello Reproducibility.
Traditional burn-wire systems rely on manual rewireing and resets that are difficult to reproduce consistently.
Our Hold-Down and Release Mechanism overcomes this challenge with rapid, repeatable reset for low-preload (<50N) applications. Key features include:
- Negligible Cost per Reset: €0.50 (COTS Screw price)
- Ultra-low Reaction Force
- Redundant Actuation
- Preload 50N
- >20 resets possible
- Low outgassing (no melted dyneema)
- ⌀33 x 8mm
Horizon One’s H1DRM helps ensure the success of critical low mass space systems such as deployable antennas, by providing Test as Fly and Fly as you Test approach.
